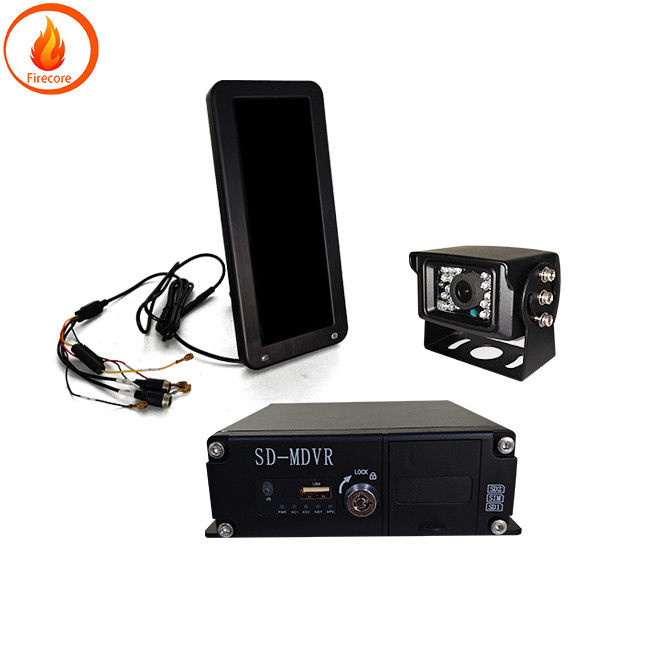

720 पी एचडी कार डीवीआर 12.3 इंच वाहन डिस्प्ले ऑनबोर्ड मॉनिटरिंग सिस्टम

वाहन कैमरा निगरानी प्रणाली 12.3 इंच डिस्प्ले ऑनबोर्ड निगरानी प्रणाली

उत्पाद पैरामीटरः
प्रदर्शित करेंः
1. आकारः 12.3 "(8: 3)
2. संकल्पः 1920 * 720 पी
3. बैकलाइटिंगः एलईडी चमकः 850cd / m2
4. कंट्रास्टः 800: 1
5. परिप्रेक्ष्य सीमाः ऊपर 85 डिग्री नीचे 85 डिग्री
6. बिजली की आपूर्तिः DC9 - 36V
7. ओएसडी नियंत्रणः वीडियो प्लेबैक वीडियो सेटिंग्स डिस्प्ले सेटिंग्स भाषा चयन रिवर्स सेटिंग्स सिस्टम सेटिंग्स
8। शक्ति 5W
9. सिग्नल इनपुट: 720P / 960P / 1080P / CVBS मिश्रित इनपुट
10. फ़ाइल प्रारूपः AVI / JPG
11. मेमोरीः TF कार्ड 256GB का समर्थन करता है
12. वीडियो संपीड़नः एच.264
रिकॉर्डिंग रिज़ॉल्यूशनः 720P/960P/1080P/CVBS
14. सिस्टम भाषाएँ: चीनी अंग्रेजी
15. डिस्प्ले स्क्रीनः सिंगल स्क्रीन / डबल स्क्रीन / 5 : 5 / 6 : 4 / 7 : 3 CHI CH2 1080P को एक साथ प्रदर्शित करने वाला ऑपरेशन
16. ट्रिगर नियंत्रणः 1-तरफा ट्रिगर
वीडियो प्रारूपः PAL/NTSC स्वचालित स्विचिंग
एचडी कैमरा:
संकल्पः AHD 720P / 960P/1080P
क्षैतिज चौड़ा कोण: 90 - 150
जलरोधक ग्रेडः IP68

हम अनुसंधान और विकास उत्पादन और वाहन निगरानी के एक पेशेवर निर्माता हैं

कार वीडियो रिकॉर्डर कार कैमरा कार यूएसबी कैमरा कार डिस्प्ले यूएसबी कैमरा

कृपया हमें ईमेल द्वारा संपर्क करें:firecore1688@163.com

वाहन पर लगाए गए दूरस्थ निगरानी टर्मिनल
The vehicle mounted remote monitoring terminal  also known as the vehicle mounted DVR   adopts a professional vehicle mounted design that is suitable for automotive power supply and adopts high seismic resistance design   It combines mechanical shock absorption   electronic shock absorption   and software seismic resistance patents   and uses a removable ordinary 2.5 - inch hard drive    It has multiple modes of security monitoring and recording functions   manual   timed   alarm linkage    and fast and convenient query and playback modes  The product has a high - speed USB 2.0 interface and broadband network interface   which facilitates data backup   The vehicle mounted intelligent terminal can be used independently   and can also utilize the extended built - in GPS global positioning system and 3G communication module to construct a wireless video monitoring management system for remote scheduling management and real - time monitoring   As an extended application   in car DVR can also provide functions such as mileage and station name prompts   enriching operational applications   Mileage and station name prompts   in addition to the sound station announcement function   the onboard terminal also provides visual mileage and station name prompts  displaying the progress of the vehicle on the route through the display inside the vehicle   The main functions and architecture of the software platform   The onboard monitoring terminal can independently complete the video recording and recording monitoring function on the vehicle, and can also be expanded and configured into a system with wireless network monitoring and management   improving and enhancing the regulatory ability of the management department on vehicles   and providing more timely monitoring of key areas and routes

The line resembling the head penetrates into the car through the gap of the license plate light   and is connected to the power supply and video extension cable of the reversing light   This type of installation of reversing camera is a popular one nowadays   with a more concealed appearance and easier installation  Another method is to drill holes for installation and embed them into the interior of the bumper   The advantage of this method is that there is no need to drill holes on the metal parts behind the car   Because the bumper is made of plastic   the camera wiring is relatively easy    The third step is to connect the power cord of the camera to the power cord of the rear reversing light    then connect the video cord of the camera to the video extension cable    The other end of the video extension cable is connected to the AV input of the car DVD display    Finally   restore the battery power    start the car    engage reverse gear   and you can see the reverse image on the car display
